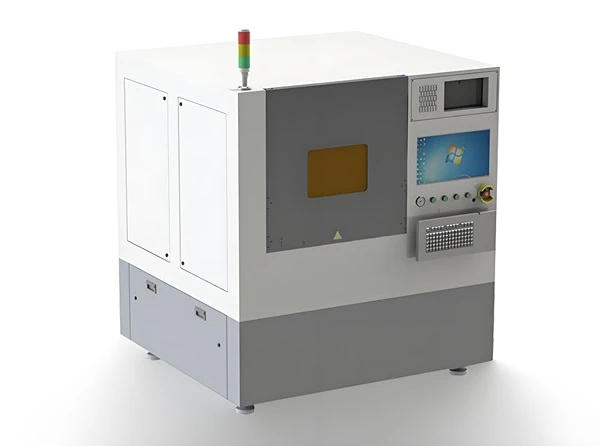

High-precision PCB Laser Cutting Machine

PCB laser cutting machines can cut and shape various types of PCBs with V-CUT and via-in-pad (VIP) features, create windows and openings, and separate both encapsulated and regular bare boards. They are suitable for laser cutting and separation of materials such as rigid-flex boards, FR4, PCBs, FPCs (flexible printed circuits), fingerprint module arrays, cover films, composite materials, and copper-based boards.

Hantar pertanyaan

tidak

Description/kawalan

The machine can use UV or green laser cutting for PCB cutting and separation according to requirements. It can precisely cut and shape various types of PCBs with V-CUT and via-in-pad (VIP) features, create windows and openings, and separate both encapsulated and regular bare boards. The equipment supports automatic loading and unloading for cutting, allowing for the entire sheet of material to be loaded and unloaded at once, and it can also process single pieces for collection.

: High-performance UV/green laser for precise, narrow cuts.
: Dust-free process to avoid circuit conductive failures.
: Contact-free separation of assembled PCBs.
: Two-axis platform ensures accuracy and speed.

: Software controls with real-time process feedback.

	RS-UVC20-50	RS-GVC35-60
	355nm	532nm

	10-20W	35W/40W/60W
	±2μm	±2μm
	±1μm	±1μm
	400mmX300mm	400mmX300mm
	±3μm	±3μm
	40х40mm	110х110mm
	±1μm	±1μm
	＜30μm	＜30μm
	＜50μm	＜50μm

	220V 50/60Hz	220V 50/60Hz

Suitable for cutting various types of PCB substrates, such as ceramic substrates, rigid-flex boards, FR4, PCBs, FPCs (flexible printed circuits), fingerprint recognition modules, cover films, composite materials, copper substrates, and aluminum substrates.

1.2mm PCB Laser Cutting

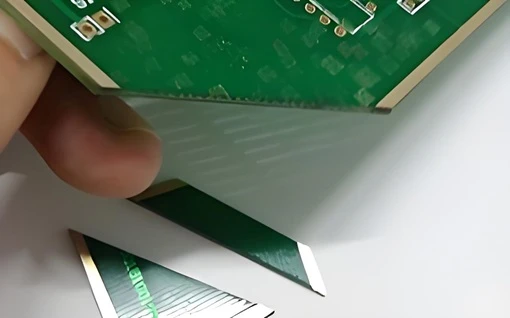

1.6mm PCB Laser Cutting

1.5mm Copper-Clad PCB Laser Cutting

V-CUT PCB Laser Cutting

1.6mm FR4 Laser Cutting
